How does concrete batching operate, and what is it? Concrete is a frequently utilized building material in most structures worldwide since it is both ecologically friendly and adaptable. The exact concrete batching process makes it feasible to determine the components of ready-mixed concrete accurately and fully, which is necessary to manufacture a high-quality finished product. One method for creating ready-mixed concrete on the building site of a structure is batching. This type of concrete is used to make concrete for big construction projects like towers, bridges, and dams. Concrete batching is often done by volume and serves to accelerate construction pace, decrease concrete component waste, and improve the workability of the concrete to obtain a smooth concrete surface.

 What does batching entail?

Concrete components are combined at facilities that produce ready-mixed concrete, sometimes referred to as batching or concrete batching. To put it another way, a machine known as batching is needed to produce massive amounts of concrete. Because this equipment makes concrete one step at a time, it is termed a batching plant. A batch is the amount of concrete that is poured in one step. The many components of a batching plant, including the water and material storage sources, scale, conveyor, wheel, bucket, silo, and mixer, all function harmoniously together.

بتن

One of the most crucial factors in the batching of concrete is precision. Prior to mixing, aggregates and concrete components are accurately and thoroughly blended, resulting in correctly mixed concrete. This device adds aggregates from depot centers and cement from silos in different ratios to the boiler in accordance with the concrete mixing plan and built-in pumps. Water is then routed into this section. Following this phase, the concrete’s constituent parts are combined and taken out of the discharge area. The time spent mixing concrete is significantly decreased by using a concrete batching machine, and the resulting concrete is also of higher quality.

Concrete batching machine components

The following components create the concrete device, often known as the batching plant:

1.Feeder or sand tanks: This section, which is composed of three to six structures, is where the necessary sand is kept separately.

2. Operator’s room: One operator is in charge of all the valves, as well as the weight and quantity of materials.

3.Cement transfer spirals: Cement is moved from the silos to the cement scale by means of this component.

4. Water meter: The water meter determines the amount of water required in each batch.

5.Sand scale: This compo`nent is capable of measuring the necessary sand and moving it to the mixer.

6. Mixer pot: These materials must enter the other portion of the mixer in order to combine cement, sand, gravel, and water.

7.Cement scale: Silos are used to store cement. Naturally, different types of cement are poured into different parts due to their differences in composition.

8. Cement silos: There may be one to five silos in this section of the concrete batching machine that are used to store cement. The quantity of silos needed is determined by the concrete center station.

9.Water storage supplier: After the water meter automatically measures the amount of water needed for concrete, the water enters the mixer.



The significance of batching and its necessity

The process of carefully combining concrete components to create uniformly high-quality concrete with the right strength is known as “concrete batching.” The grade of the concrete that goes into a construction project greatly affects how long it lasts. As a result, you must carefully select the elements for your concrete if you desire high-quality, long-lasting concrete, which can only be made by batching concrete. Making sure that tangible materials are properly categorized helps to prevent mistakes and misunderstandings. We will discuss a few noteworthy points below that demonstrate the significance of concrete batching.

  • As the concrete materials are precisely graded, proper batching increases the workability of fresh concrete. The batching technique produces an extremely cohesive concrete mix. Theaggregates are also altered during the batching process of concrete materials because excessive water content can lead to segregation or bleeding in the concrete, which lowers its quality.
  • Inadequate mixing of the materials in concrete can result in poor finishing and texture changes if there are batching errors in the cement and fine aggregates (sand).
  • You may expedite construction while saving money and time by selecting the appropriate batching method.

By avoiding the waste of concrete components, batching allows us to reduce the cost of the concreting process as well.



Types of concrete batching:

1.Concrete batching by random volume

The amount of cement, aggregates, water, etc. can’t be controlled when batching this way, so there’s a chance the final mix may be disordered and the concrete won’t have the strength it needs. Due to the workers’ haphazard usage of various containers and the lack of consideration for container count, this approach is wholly unscientific in that the quantity of materials cannot be regulated. Even for medium-sized buildings, using this concrete batching method is not advised as it weakens the structure’s safety and strength.

2.Equivalent volume batching

Another method of batching concrete is volume batching, which makes use of measuring boxes, sometimes referred to as “gauge” or “pharma.” Using this procedure, the size of the boxes is estimated after concrete elements like sand, gravel, and cement are put into them. Avoiding overfilling the gauge is crucial. In this manner, the mixture is completed with the necessary amount of water, and the concrete is batched. Compared to the earlier concrete batching process, this one is more dependable.

3.Concrete weight batching

Another common method for batching concrete, particularly for major projects, is weight batching. Ready-mixed concrete and its required quality may be produced more easily when this approach, which uses a weighted batching system, is applied. In this procedure, water is a crucial element. For this reason, it is applied appropriately in this technique. Concrete will not work well at all if there is insufficient water in it. The strength of concrete is diminished by an overabundance of water. This method’s calculation of water should be done in liters.



بتن

What is the process of batching concrete?

 The way the batching machine works and how cement is made is that raw ingredients are weighed and moved to the mixer via conveyors and buckets in the batching machine. To create the desired concrete, it is then combined with water and mixed for a predetermined amount of time. The prepared concrete is moved to mixer trucks or different conveying equipment in the following batching step, and in the final phase, it is transported to the construction site.



The advantages of concrete batching

  1. Enough concrete is available for major structures.
  2. Creation of concrete with increased quality
  3. Elimination of the site’s raw material storage space
  4. Removing the expense of concrete machinery and plants
  5. Preventing raw material waste
  6. Removal of employees involved in the manufacturing of concrete
  7. Cutting down on the amount of time needed to make concrete
  8. Lowering the project site’s level of noise and dust pollution

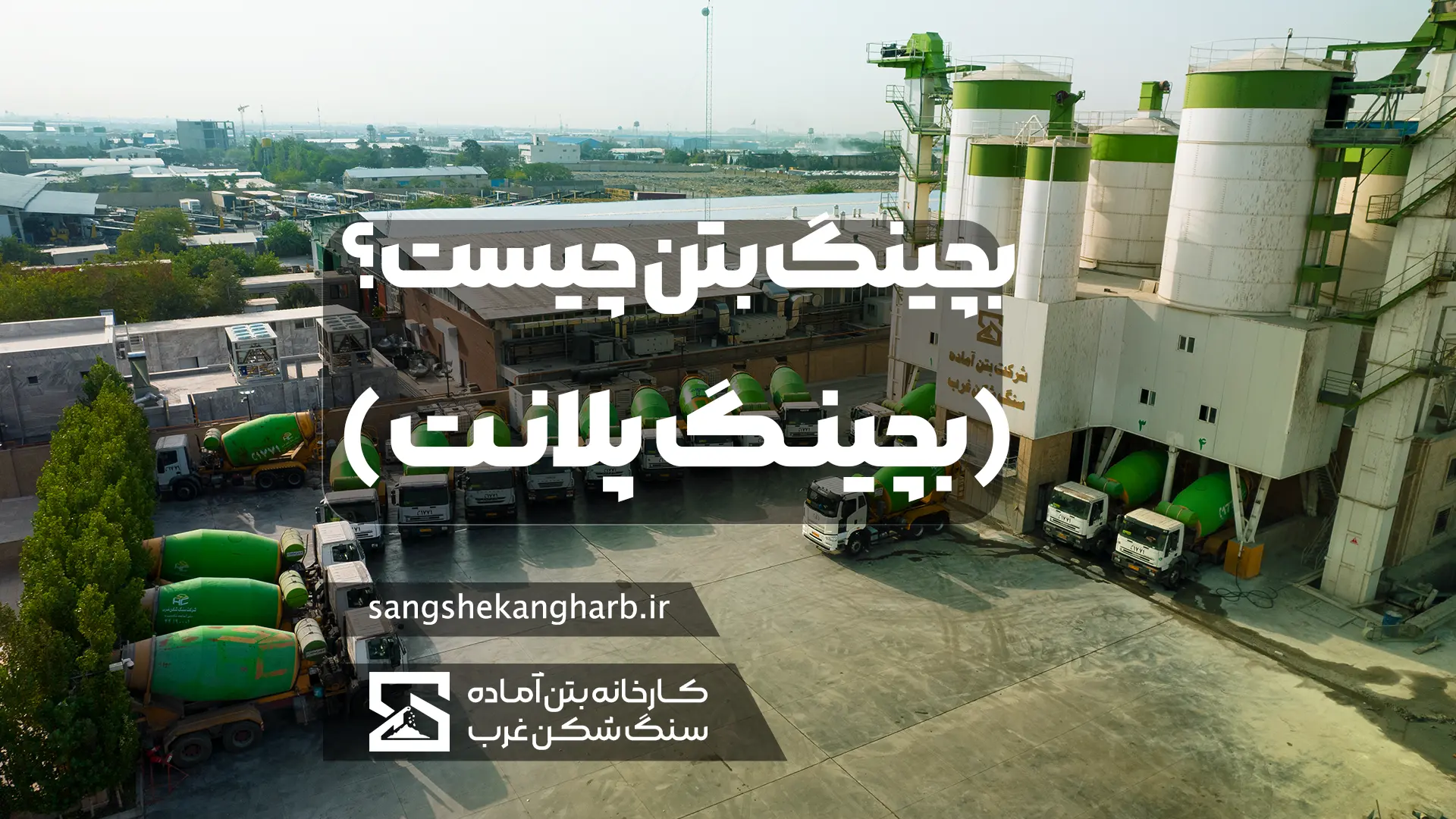

A batching plant: what is it?

One kind of batching that continually generates concrete is the batching plant.

What differentiates dry concrete batching from wet concrete batching?

 All ingredients are combined in a mixer at batching facilities, and the finished concrete is then transported to the project site. However, with dry batching plants, all of the ingredients are combined except for the water, which is added when the truck is loaded and the mixing is completed on the way to the project site.
